tutorial service kerusakan dgn INSERT SIM

tutorial service kerusakan dgn INSERT SIM

Postby Esant84 » November 7th, 2014, 12:28 pm

Tutor ; service hardware dgn diagnosa ‘insert SIM’

Kerusakan insert SIM,di update tdk bisa,aplly fubu jg sami mawon…diagnose akhir masalah hardware
Pd jalur SIM.

selidik punya selidik utk seri x75 new gold & new Sgold pakai chip proteksi ESD buat pengaman

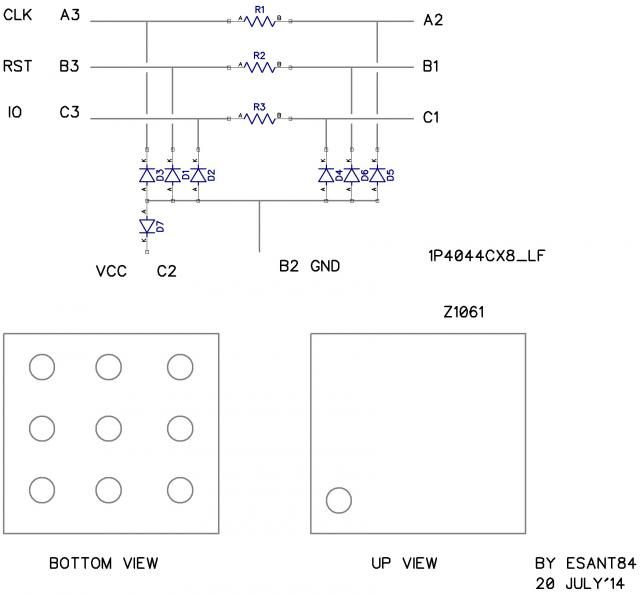

Kode chip sKema ; Z1601
Kode ic IP4044CX8_LF
Posisi chip; dibawah SIM reader,diatas chip CPU 8876
Kontruksi 9 pin dgn kode kaki A2,A3,B1,B2,B3,C1,C2,C3

Masing2 fungsi ;
A2=SIM CLK IN,
A3=SIM CLK OUT,
B1=SIM RST IN,
B2=GND,
B3=SIM RST OUT,
C1=SIM IO IN,
C2=VDD,
C3=SIM IO Out




Solusi ya mesti ganti IC atau bisa kanibal,solusi lain yg sdh sy coba adlh dgn menjumper jalur ic dgn cara mencabut chipnya baru dijumper utk jalur SIM CLK,SIM RST & SIM IO dgn hasil ...........................................SOLVED...........................................!!!!!!!!!!

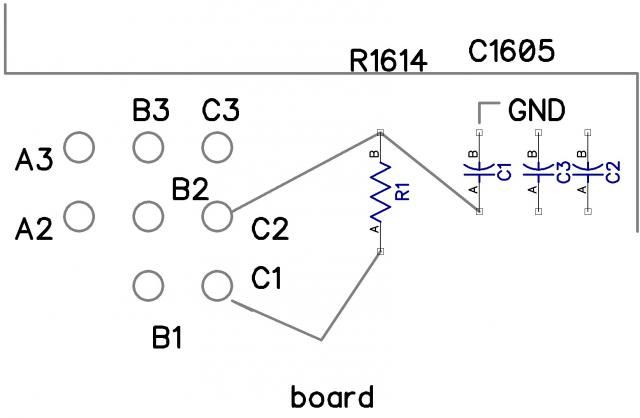

Pin di board yg mesti dijumper adlh A2-A3, B1-B3, C1-C3
